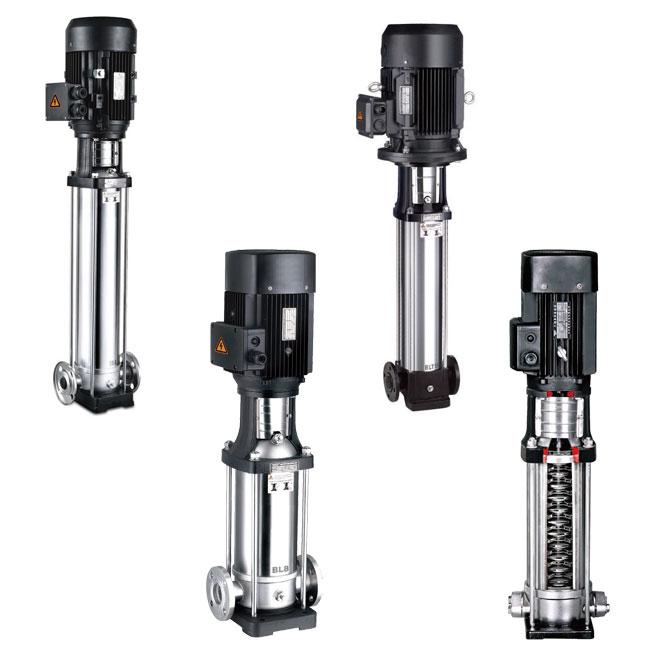

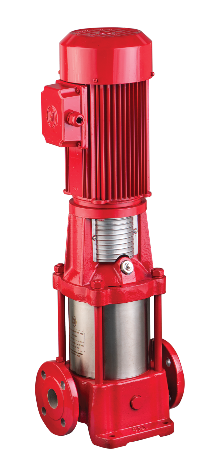

VERTICAL MULTISTAGE INLINE PUMPS - MV SERIES
| Performance Range / Operation Limits | ||
|---|---|---|
| Max. Flow | 200 m3/ h | |
| Max. Head | 320 m | |
| Max. Liquid Temp | 120oC | |
| Operating Pressure Range | 3.3 Mpa (33 bar) | |
Applications
- Pressure Boosting.
- Pumping Clean Liquid in Industries.
- Reverse Osmosis & DM Plant.
- Boiler Feed.
- Fire Fighting.
- Hot & Cold Water Circulation.
- Industrial Washing.

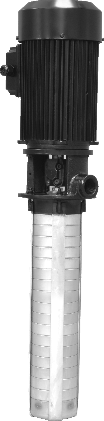

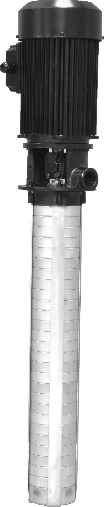

Immersible pump - coupled type-vdc Series
| Specifications / Operational Limits | ||
|---|---|---|
| Max. Power | 18.5 kW | |
| Max. Flow | 200 m3/ h | |
| Max. Head | 240 m | |
| Max. Liquid Temp | 90oC | |
Applications
- CNC Machines and Machining Centers
- EDM Wire cutting / Turning / Chilling
- Condensate System
- Industrial Washing /Temperature Control Units

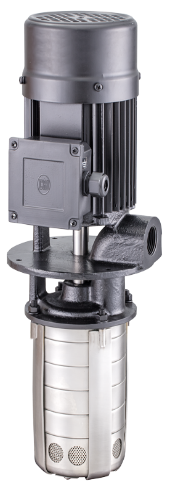

Immersible pump - single shaft- Vds Series
| Specifications / Operation Limits | ||
|---|---|---|
| Max. Power | 1.1 kW | |
| Max. Flow | 4.0 m3/ h | |
| Max. Head | 55 m | |
| Max. Liquid Temp | 90oC | |
Applications
- Retro fitting
- EDM Wire cut and other conventional machines
- Small CNC Lathes/Machining Centers
- Chilling units and industrial washing machines
- Water cooling emulsions, cooling / cutting oils
- Spark machine tools / Filtering systems

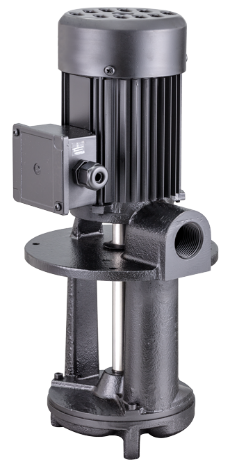

Immersible pump – canti lever - vdk Series
| Specifications / Operation Limits | ||
|---|---|---|
| Max. Power | 1.1 kW | |
| Max. Flow | 9.6 m3/ h | |
| Max. Head | 9.0 m | |
| Max. Liquid Temp | 90oC | |
Applications
- Retro fitting
- EDM Wire cut and other conventional machines
- Small CNC Lathes/Machining Centres
- Chilling units and industrial washing machines
- Water cooling emulsions, cooling / cutting oils

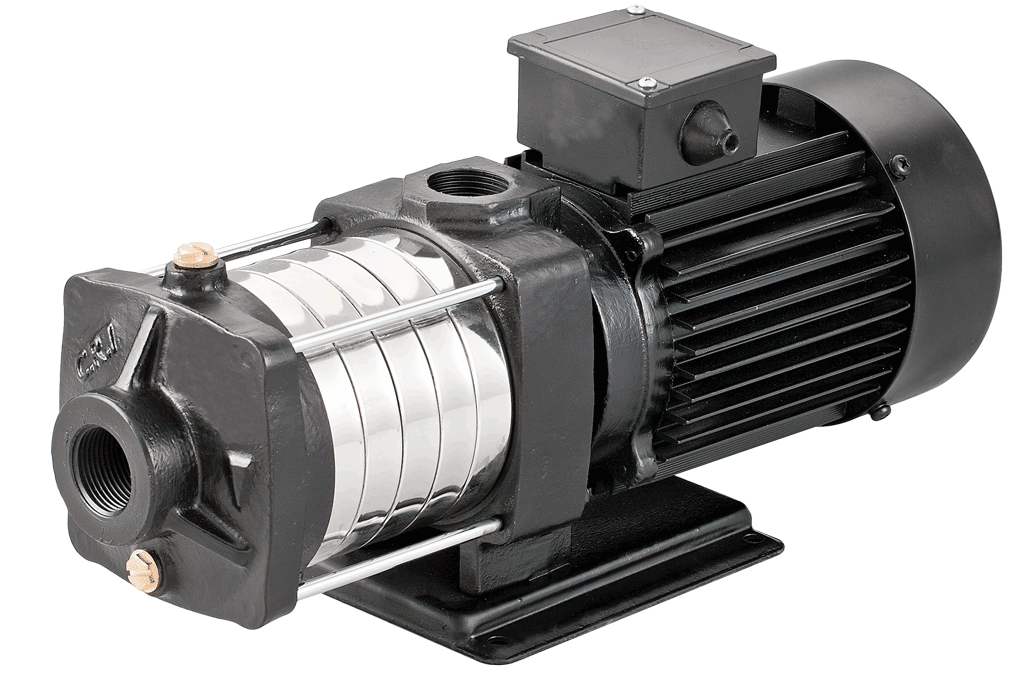

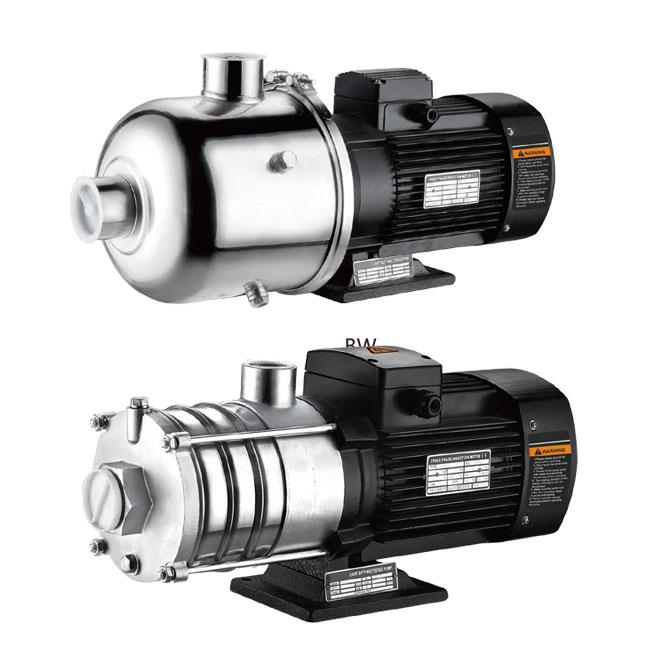

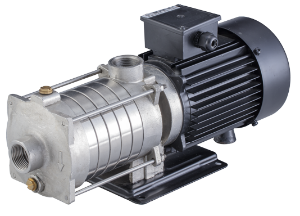

Horizontal Multistage Pumps - MH Series
| Specifications / Operation Limits | ||
|---|---|---|
| Max. Power | 2.2 kW | |
| Max. Flow | 14.0 m3/ h | |
| Max. Head | 50 m | |
| Max. Liquid Temp | Upto 90oC | |
Applications
- Pumping of clean liquids in industry.
- Small farms & gardens.
- Small water works & Car Washing.
- Cooling Systems / Air Conditioning system.
- Schools & Hospitals.
- Industrial & domestic water pressure boosting & distribution.

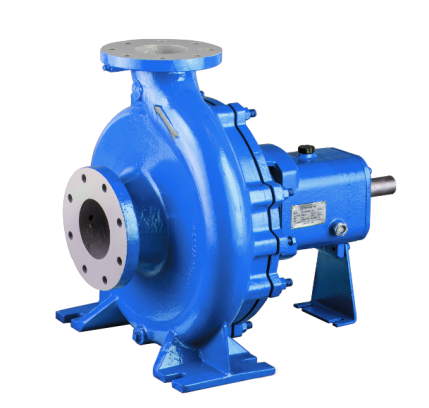

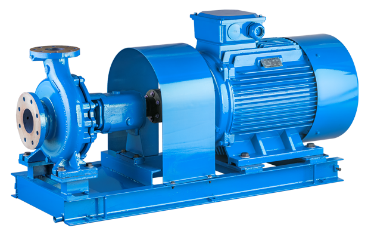

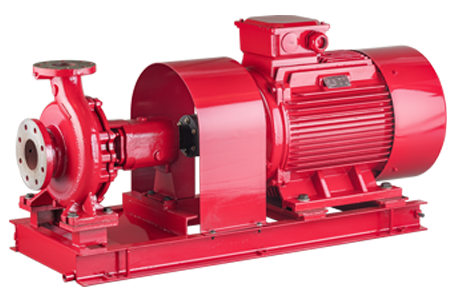

END SUCTION PUMPS - eCW SERIES
| Performance Range / Operation Limits | ||
|---|---|---|
| Max. Flow | 550 m3/ h | |
| Max. Head | 100 m | |
| Max. Liquid Temp | 90oC | |
| Pump Sizes | DN 32 - DN 150 | |
| MOC | ||
|---|---|---|
| Impeller | Cast Iron / Bronze / SS | |
| Shaft | EN – 8 / SS 410 | |
| Sleeve | SS 410 | |
Applications
Water Supply, HVAC systems, Swimming Pools fountains, Food, Sugar, Paper, Pulp, Chemical, Cement, Steel & Construction Industries, Power Plant, Water Supply, Irrigation, Pressure Boosting, etc.,

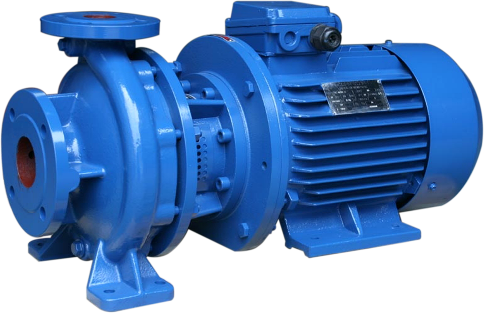

Close coupled PUMPS - CCW SERIES
| Performance Range / Operation Limits | ||
|---|---|---|
| Max. Flow | 550 m3/ h | |
| Max. Head | 100 m | |
| Max. Liquid Temp | 90oC | |
| Pump Sizes | DN 32 - DN 150 | |
| MOC | ||
|---|---|---|
| Pump Casing | Cast Iron / WCB / SS | |
| Impeller | Cast Iron / Bronze / SS | |
| Shaft | EN – 8 / SS 410 | |
| Sleeve | SS 410 | |
Applications
Water Supply, HVAC systems, Swimming Pools fountains, Food, Sugar, Paper, Pulp, Chemical, Cement, Steel & Construction Industries, Power Plant, Water Supply, Irrigation, Pressure Boosting, etc.,

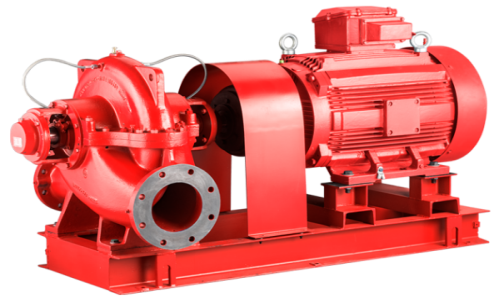

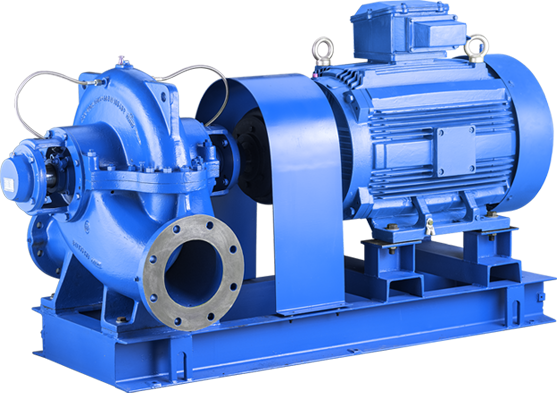

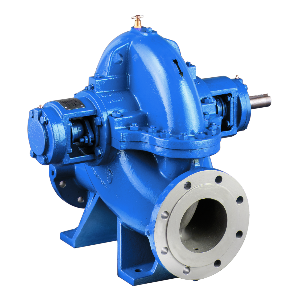

HORIZONTAL SPLIT CASE PUMPS - SCW SERIES
| Performance Range / Operation Limits | ||
|---|---|---|
| Max. Flow | 2500 m3/ h | |
| Max. Head | 170 m | |
| Max. Liquid Temp | 104oC | |
| MOC | ||
|---|---|---|
| Pump Casing | CI / WCB / BZ / SS | |
| Impeller | Cast Iron / Bronze / SS | |
| Shaft | EN – 8 / SS | |
Applications
Water Supply, HVAC systems, Mines, Refiners, Marine, Power Plant, Water Supply, Irrigation, Steel Plant, etc.,

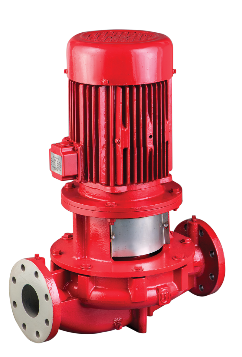

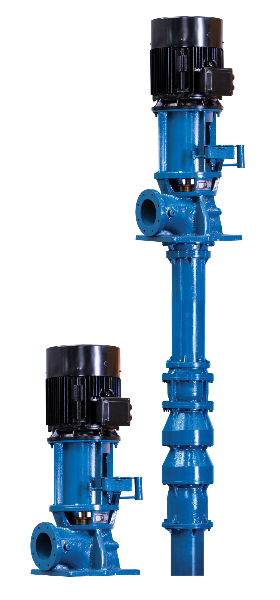

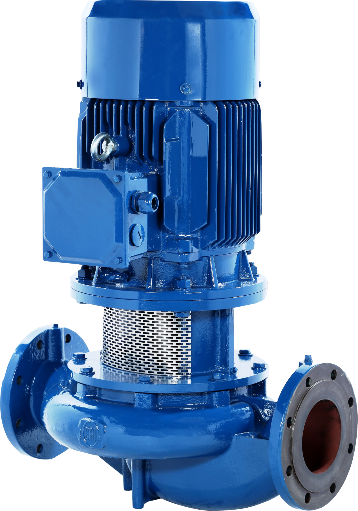

Vertical volute casing pumps - Vs I VC Series
| Performance Range / Operation Limits | ||
|---|---|---|
| Max. Power | 132.0 Kw | |
| Max. Flow | 630 m3/ h | |
| Max. Head | 105 m | |
| Max. Liquid Temp | 105oC | |
| MOC | ||
|---|---|---|
| Pump Casing | CI / SS | |
| Impeller | Cast Iron / Bronze / SS | |
| Shaft | EN – 8 / SS | |
Applications
Water Supply, HVAC systems, Mines, Refiners, Marine, Power Plant, Water Supply, Irrigation, Steel Plant, Cooling Systems, Schools, Hospital, etc.,
FIRE FIGHTING SOLUTIONS
VERTICAL TURBINE PUMPS - VT SERIES
| Performance Range / Operation Limits | ||
|---|---|---|
| Max. Flow | 1485 m3/ h | |
| Max. Head | 150 m | |
| Max. Liquid Temp | 104oC | |
| Suction Depth | ||
|---|---|---|
| 40 m for Small Size up to | 150 mm Coloum Assy | |
| 30 m for Large Size up to | 400 mm Coloum Assy | |
| MOC | ||
|---|---|---|
| Pump Casing | CI | |
| Impeller | Cast Iron / Bronze / SS | |
| Shaft | SS | |
Applications
Water Supply, HVAC systems, Mines, Refiners, Marine, Power Plant, Water Supply, Irrigation, Steel Plant, Cement & Process, etc.,

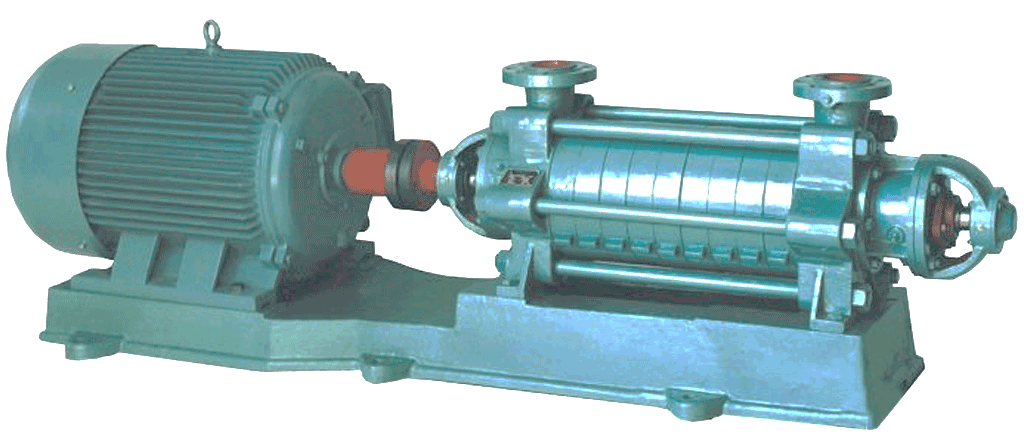

HORIZONTAL MULTISTAGE PUMPS - HM Series
| Specifications / Operation Limits | ||
|---|---|---|
| Max. Power | 600.0 kW | |
| Max. Flow Rate | 800 m3/ h | |
| Max. Head | 400 m | |
| Max. Op. Temp | 180oC | |
| Delivery Sizes | 32 mm to 150 mm | |
| Shaft Sealing | Gland / M. Seal | |
Applications
- Industrial Pressure Boosting
- Fire Fighting
- High Rise Building & Hotels
- Schools & Hospitals
- Cooling Systems / Air Conditioning system

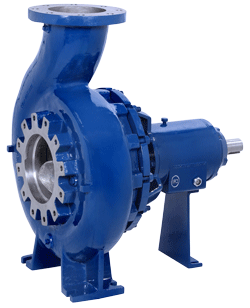

END SUCTION CENTRIFUGAL – CHEMICAL - ECC SERIES
| Specifications / Operation Limits | ||
|---|---|---|
| Max. Power | 150.0 kW | |
| Max. Flow Rate | 1020 m3/ h | |
| Max. Head | 198 m | |
| Pressure | 10/16 bar | |
Salient Features
- Greater wear life
- Ease of maintenance
- Maximum bearing protection
- Specification to ANSI B73.1
- Standard oil splash lubrication
END SUCTION CENTRIFUGAL - PAPER/PULP - ECP SERIES
| Specifications / Operation Limits | ||
|---|---|---|
| Max. Power | 340 kW | |
| Max. Flow | 80 m3/ h | |
| Max. Head | 100 m | |
| Max. Speed | 700 / 1800 rpm | |
Salient Features
- High performance
- Open impeller
- Available in horizontal and vertical
- Cantilever configurations
- Removable suction wear plate
- Greater wear life
END SUCTION CENTRIFUGAL - HARD METAL SLURRY - ECH SERIES
| Specifications / Operation Limits | ||
|---|---|---|
| Max. Power | 220 kW | |
| Max. Flow | 1500 m3/ h | |
| Max. Head | 50 m | |
| Max. Speed | 400/2000 rpm | |
Salient Features
- 11 pump sizes built around 3 power frames
- Fixed / variable speed drive
- Availed in vertical and horizontal cantilever configurations
- Standard oil splash lubrication
- Removable suction and rear wear plate
END SUCTION CENTRIFUGAL - RUBBER LINED SLURRY - ECR SERIES
| Specifications / Operation Limits | ||
|---|---|---|
| Max. Power | 220 kW | |
| Max. Flow | 3200 m3/ h | |
| Max. Head | 95 m | |
| Max. Speed | 700/1800 rpm | |
Salient Features
- High performance
- Open/closed impeller
- Available in horizontal and vertical
- Cantilever configurations
- Removable suction wear plate
- Greater wear life
Vertical Multi-Stage Centrifugal Pumps
Horizontal Multi-Stage Centrifugal Pumps
